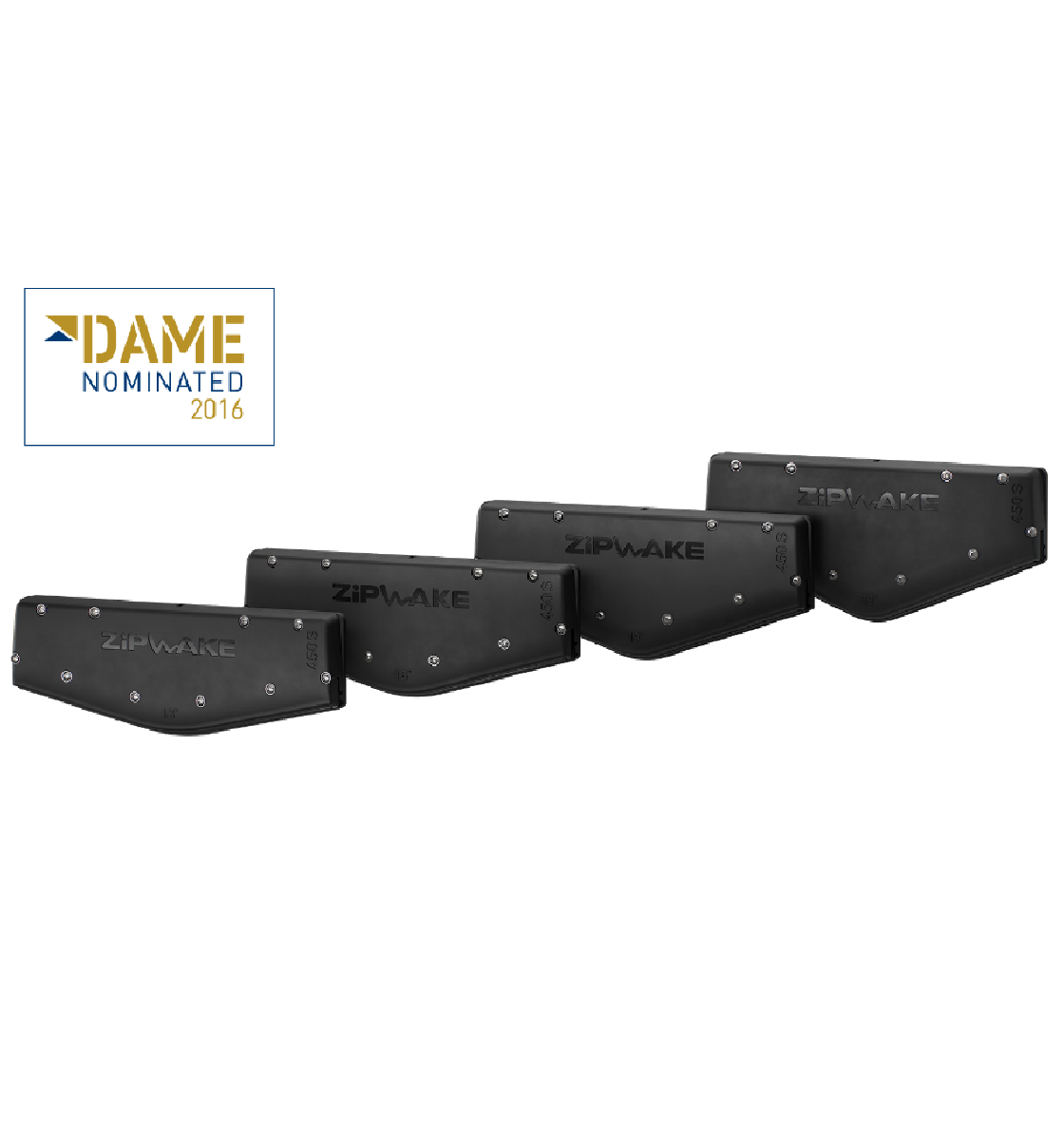

Zipwake Interceptors with 3m Cable – V-Shaped

Zipwake Interceptors with 3 metre cable – V-Shaped

Clear

To enquire about this product:-

Description

V-shaped centerline mounted interceptors can be included in new installations, or retro-fitted to already installed systems. The modular design enables boat designers to develop their own novel applications, e.g. in multihulls or stepped high- speed craft.

Model – IT450-S V13 / IT450-S V16 / IT450-S V19 / IT450-S V22

Length – 450 mm

Weight – 3.2/ 3.3 / 3.4 / 3.5 kg

Max. Boat Speed – 60 knots

Blade Stroke – 30 mm (1.2 in)

Blade Rate – 20 mm/s (0.8 in/s)

Thru-Hull Cable Fitting – Concealed or above waterline

Servo actuator – SU-S

Cable Length – 3 m (10 ft), extendable up to 6 m (20 ft)

Cable Material – PUR

Connector – M12 5-pin circular

Connector Diameter – 14.5 mm (0.57 in)

Supply Voltage – 12 – 32 V DC

Power Consumption – 25 W max

Operating Temperature – 0° to +40°C (+32° to +104°F)

Storage Temperature -40° to +90°C (-40° to +194°F)

Waterproof Rating – IP68 5 m (16 ft)

Compliance – CE, FCC

Connector Diameter – 14.5 mm (0.57 in)

Additional information

Model

IT450-S V13, IT450-S V16, IT450-S V19, IT450-S V22
