Description
Model – IT300-S CHINE PORT / IT300-S C CHINE STBD / IT450-S CHINE PORT / IT 450-S CHINE STBD

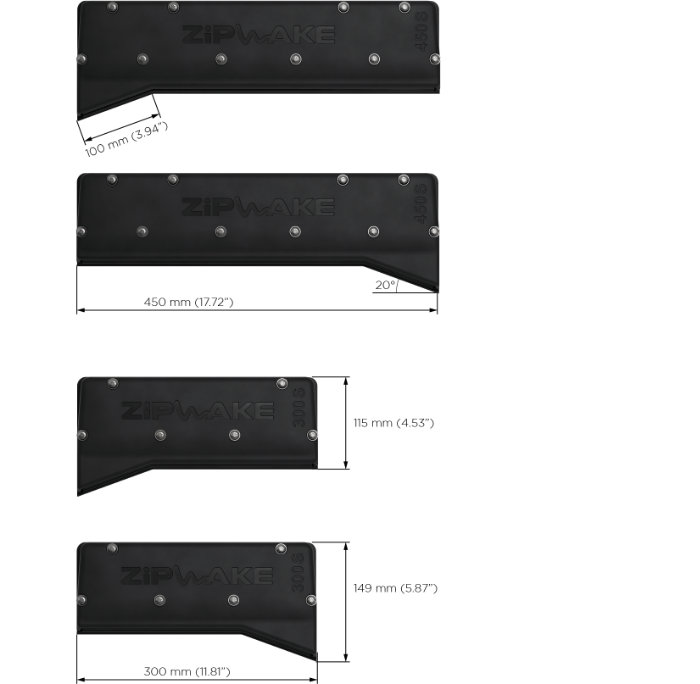

Length – 300 / 450 mm
Weight 2.2 / 2.9 kg
Max. Boat Speed – 60 knots
Blade Stroke – 30 mm (1.2 in)
Blade Rate – 20 mm/s (0.8 in/s)
Thru-Hull Cable Fitting – Concealed or above waterline
Servo actuator – SU-S
Cable Length – 3 m (10 ft), extendable up to 6 m (20 ft)
Cable Material – PUR
Connector – M12 5-pin circular
Connector Diameter – 14.5 mm (0.57 in)
Supply Voltage – 12 – 32 V DC
Power Consumption – 25 W max
Operating Temperature – 0° to +40°C (+32° to +104°F)
Storage Temperature – -40° to +90°C (-40° to +194°F)
Waterproof Rating – IP68 5 m (16 ft)
Compliance – CE, FCC
Connector Diameter – 14.5 mm (0.57 in)
