Zipwake Interceptors S Series Chine with 3m Cable for Integration

Clear

To enquire about this product:-

Description

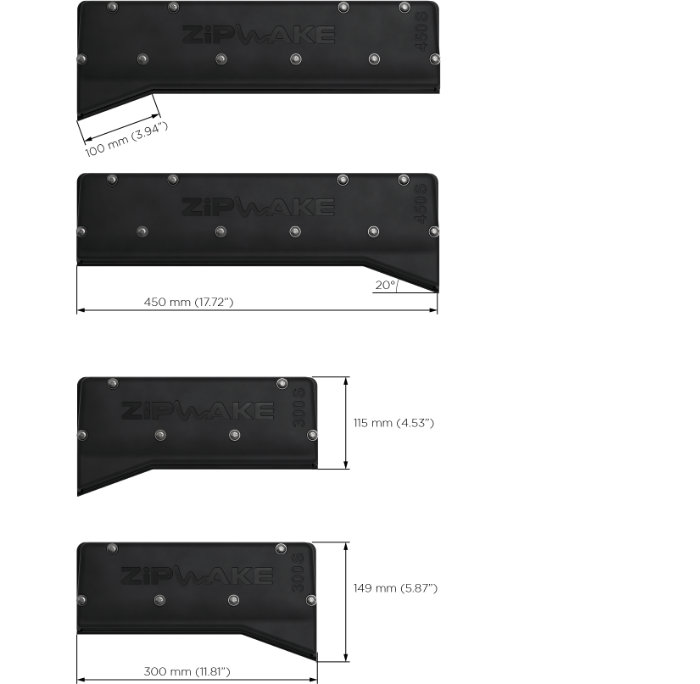

Model – IT300-S CHINE PORT / IT300-S C CHINE STBD / IT450-S CHINE PORT / IT 450-S CHINE STBD

Length – 300 / 450  mm

Weight 2.2 / 2.9 kg

Max. Boat Speed – 60 knots

Blade Stroke – 30 mm (1.2 in)

Blade Rate – 20 mm/s (0.8 in/s)

Thru-Hull Cable Fitting – Concealed or above waterline

Servo actuator – SU-S

Cable Length – 3 m (10 ft), extendable up to 6 m (20 ft)

Cable Material – PUR

Connector – M12 5-pin circular

Connector Diameter – 14.5 mm (0.57 in)

Supply Voltage – 12 – 32 V DC

Power Consumption – 25 W max

Operating Temperature – 0° to +40°C (+32° to +104°F)

Storage Temperature – -40° to +90°C (-40° to +194°F)

Waterproof Rating – IP68 5 m (16 ft)

Compliance – CE, FCC

Connector Diameter – 14.5 mm (0.57 in)

THE INTEGRATOR MODULE

FUTURE-PROOF YOUR BOAT
Zipwake has been revolutionizing boating since day one, starting with the release of our Dynamic Trim Control Solution. Now we’ve done it again. As boat designs trend toward clean dashboards, larger displays, more flexibility and increased system integration, Zipwake’s new Integrator Module gives boat owners a future-proof solution.

SEAMLESS INTEGRATION
Create your perfect set-up. The Integrator Module seamlessly connects the Zipwake system to multiple MFDs from different manufacturers – and even connects wirelessly to smart devices – keeping dashboards free of clutter. But it also offers the flexibility of connecting up to 3 control panels for operation via control wheels in addition to touch screens. A CAN interface enables further external system integration.

WIRELESS CONNECTIVITY
For even greater control, the Integrator Module’s wireless interface lets you configure, operate, monitor, and update the system wirelessly via the Zipwake app on your smartphone or tablet.

EASY TO INSTALL – ANYWHERE
Just slightly bigger than a postcard, the discreet Integrator Module is easy to install behind the helm/dash, on the flybridge or in the engine room. It’s waterproof and comes with a special ethernet connector collar that makes sealing standard ethernet cables easy. A single cable connects the unit to an MFD.

Additional information

Model

300 S Chine, 450 S Chine
