Description

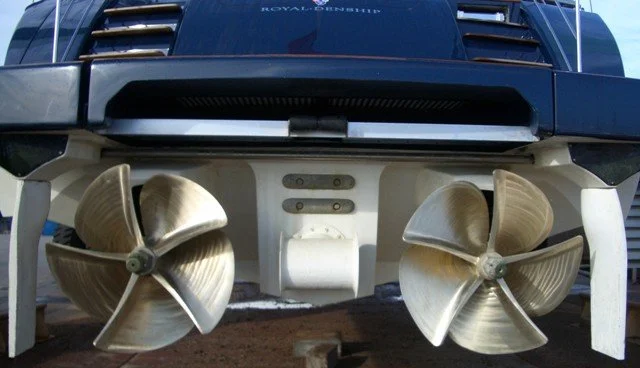

Q-SPD 4 Surface Drive – High-Performance Integrated Marine Propulsion
The QSD4 Series is a versatile, user-friendly, high-performance marine propulsion system designed for larger vessels up to 30 metres, supporting engine outputs of more than 3,000hp per unit. As a fully integrated propulsion solution, the QSD4 delivers exceptional reliability with extremely low maintenance requirements, making it ideal for high-powered recreational yachts, patrol boats, and commercial craft. Engineered as a complete bolt-on assembly, it incorporates the driveline, thrust bearing, propeller, rudders, steering links, and exhaust system, enabling faster and simpler installation compared to traditional conventional propulsion systems.
Transom-mounted for maximum design flexibility, the QSD4 allows engines to be positioned further aft, eliminating the need for V-drive gearboxes and freeing valuable midships space for accommodation or operational use. Shorter and more efficient engineering runs reduce installation time and overall build costs. The carbon fibre and E-glass composite monocoque body is precision-built using advanced resin infusion techniques, creating a lightweight yet incredibly strong structure. All mechanical components are manufactured from marine-grade materials, including NIBRAL and stainless steel, ensuring durability, corrosion resistance, and long-term performance in demanding marine environments.
All critical mechanical elements are positioned safely inboard to protect them from exposure to harsh conditions. The oil-lubricated thrust bearing is water-cooled for enhanced longevity, and exhaust provisions are integrated across all models, with optional flange fittings available. Each QSD4 drive is supplied with an intermediate shaft, a Q-SPD specified custom-designed propeller, and matched power steering, delivering a complete, optimised propulsion package. Steering is achieved via a convenient inboard-mounted tiller and can integrate with any conventional marine steering system. Builders may opt for a fully integrated steering solution from Q-Marine or select their preferred system to suit the vessel’s wider onboard configuration.
The QSD4 Series is available in two base models: the QSD402 and QSD450, offering flexible, high-performance propulsion solutions tailored to the demands of modern high-powered vessels.
Materials and Features:
| Main Housing | Eglass and Carbon Fibre in Epoxy Matrix |
| Main Propeller Shaft | Stainless Steel SAF2205 |
| Rudders and Tillers | Nibral |
| Thrust Housing and Coupling | Stainless Steel 316 |
| Fasteners and Fittings | Stainless Steel 316 |
| Shaft and Rudder Bearings | Water Lubricated Polymer |
| Main Shaft Seal Type | Single Rotary Lip Seal |
| Exhaust Diameter | 304mm (12 inch) or 356mm (14 inch) |
Specifications and Ratings:
| Models | (1) Nominal Weight | (2) Max Torque | Nomial Power Range per drive* | Nominal Max Vessel Weight per drive | Propeller Shaft Diameter | Max Prop Dia. |
| QSPD402 | 480kg
1,055lb |
12,000Nm
8,900lbft |
750-1500kW
1000-2000bhp |
33,000kg
73,300lb |
102mm
4.00 inch |
1170 mm
46 inch |
| QSPD450 | 520kg
1145lb |
15,000Nm
11,100lbft |
1120-2240kW
1500-3000bhp |
35,000kg
77,000lb |
114mm
4.50 inch |
1170 mm
46 inch |
(1) Weights are nominal for drive only excluding propeller.
(2) These specifications are a guideline only. Actual application limits will depend on shaft speed, power to weight ratio and vessels speed and mission.
* Power limits dependent on application parameters.
** Specifications subject to change.
Upgrade your vessel with the Q-SPD 4 Surface Drive for a compact, powerful, and low-maintenance propulsion solution that delivers unmatched control, efficiency, and durability on the water. To enquire or place an order, contact Hypro Marine today and elevate your vessel’s performance.
