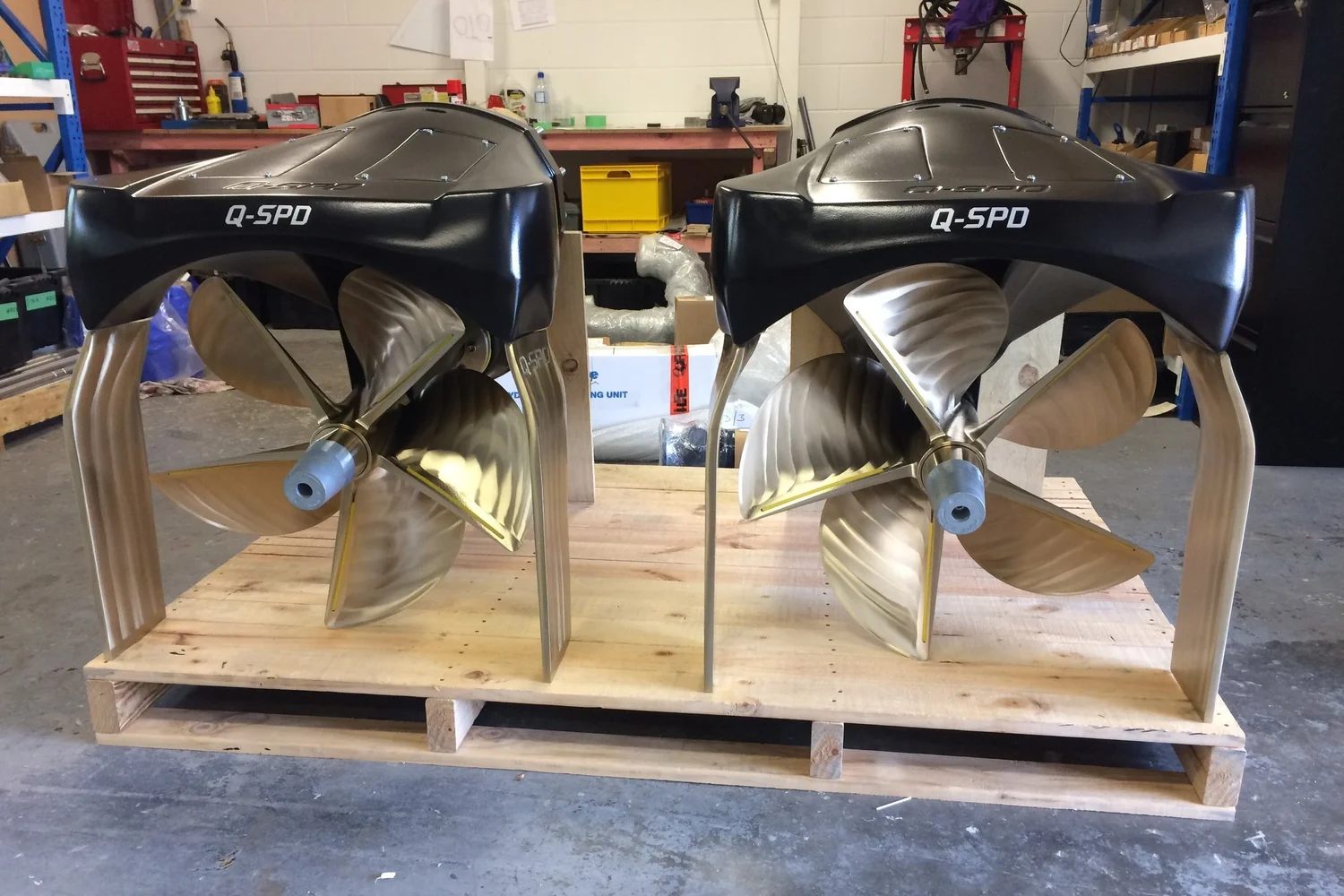

Q-SPD 1 Surface Drive – High-Performance Integrated Marine Propulsion
The Q-SPD 1 Surface Drive is a fully integrated marine propulsion solution engineered for superior performance, efficiency, and durability. Designed to deliver exceptional handling across all speeds, the QSD1 series requires less maintenance and service than any other comparable propulsion system, making it ideal for both recreational and commercial applications.
Manufactured from high-quality marine-grade materials, the Q-SPD 1 is both lightweight and robust, providing reliable performance even in demanding conditions. All critical mechanics and components are located inboard, protecting them from harsh environmental elements and extending the lifespan of the system. The oil-lubricated thrust bearing is water-cooled, ensuring smooth, efficient operation under heavy loads, while integrated exhaust provisions, including optional flange fittings, simplify installation and maintenance.
Each QSD1 drive is supplied with an intermediate shaft and a custom-designed propeller specified by Q-SPD, along with manual or power steering tailored to the specific application. This ensures a complete, ready-to-install propulsion system that delivers optimal performance, precise handling, and long-term reliability for high-speed recreational boats, workboats, or commercial vessels.
Upgrade your vessel with the Q-SPD 1 Surface Drive for a compact, powerful, and low-maintenance propulsion solution that maximizes efficiency, control, and durability on the water.
Materials and Features:
| Main Housing | Eglass and Carbon Fibre in Epoxy Matrix |
| Main Propeller Shaft | Stainless Steel SAF2205 |
| Rudders and Tillers | Nibral |
| Thrust Housing and Coupling | Stainless Steel 316 |
| Fasteners and Fittings | Stainless Steel 316 |
| Shaft and Rudder Bearings | Water Lubricated Polymer |
| Main Shaft Seal Type | Single Rotary Lip Seal |
| Exhaust Diameter | 152mm (6 inch) |
Specifications and Ratings:
| Models | (1) Nominal Weight | (2) Max Torque | Nomial Power Range per drive* | Nominal Max Vessel Weight per drive | Max Prop Dia. |
| QSPD112 | 85kg | 1,600Nm
1,180lbft |
200-300kW
270-400hp |
6,000kg
13,200lb |
26″ (660mm) |
| QSPD125 | 95kg | 3,200Nm
2,210 lbft |
250-560kW
350-750hp |
6,000kg
13,200lb |
26″ (660mm) |
| QSPD130 | 105kg | 4,200Nm
3,094lbft |
370-700kW
500-940hp |
6,500kg
14,300lb |
26″ (660mm) |
(1) Weights are nominal for drive only excluding propeller.
(2) These specifications are a guideline only. Actual application limits will depend on shaft speed, power to weight ratio and vessels speed and mission.
* Power limits dependent on application parameters.
** Specifications subject to change.
Upgrade your vessel with the Q-SPD 1 Surface Drive for a compact, powerful, and low-maintenance propulsion solution that maximizes efficiency, control, and durability on the water. To enquire or place an order, contact us today at Hypro Marine and take your vessel’s performance to the next level.
