Description

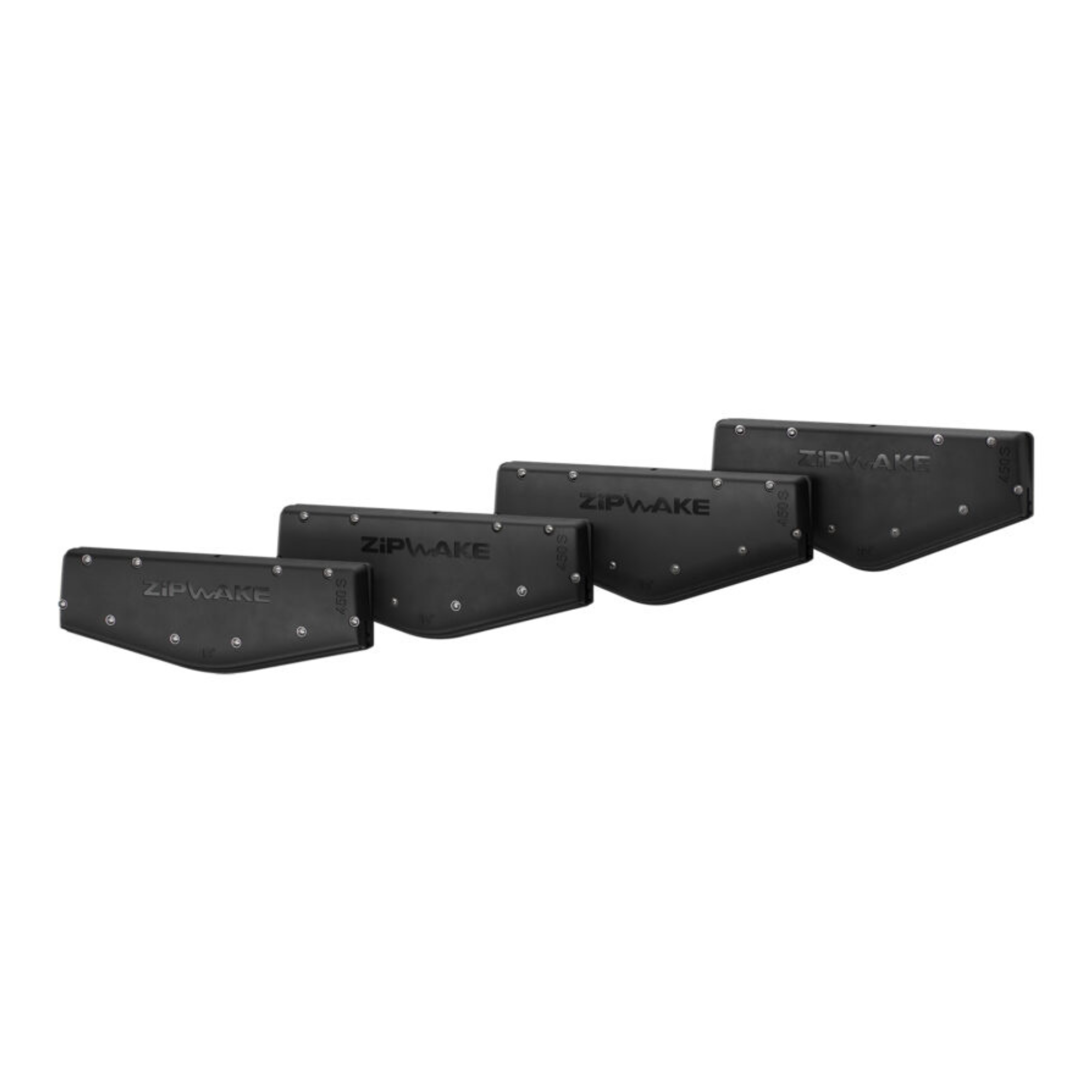

Zipwake Series S PRO V-Shaped Interceptors – For Boats Up to 50 ft
Chine interceptors provide a unique means of maximizing pitch and roll motion control by utilizing the furthest outboard surfaces of the hull bottom for lift generation. As a rule, the lift effect of a chine interceptor matches the lift of a straight interceptor one size larger mounted inboard of the chine, making them the go-to choice when selecting interceptors.
KEY FEATURES:
- 60 mm blade stroke for high-demand installations
- True outboard mounting
- Modular design with integrated mounting plate
- Fast actuation for responsive trim control
- Submersible servo units
- Brushless 12–24V DC servo motor
- Calibration-free operation
- Automatic cleaning with selectable periodic cleaning cycles
- Helps prevent fouling inside the interceptor
- No corrosive materials
- Thru-hull fitting options for above-waterline or concealed installation
SPECIFICATIONS SERIES S PRO

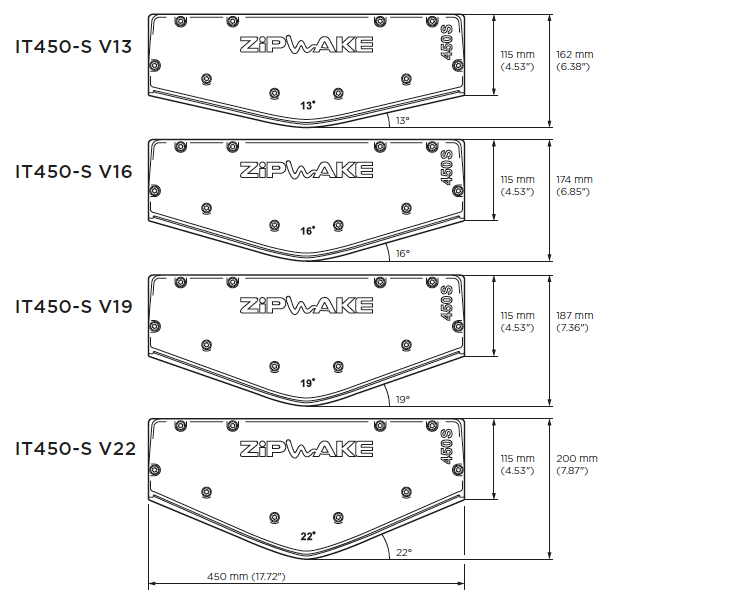

| Model | IT450-S PRO V13 / IT450-S PRO V16 / IT450-S PRO V19 / IT450-S PRO V22 |
| Length mm (in) | 450 (18) / 450 (18) / 450 (18) / 450 (18) / mm (in) |
| Weight kg (lbs) | 3.2(7.1) / 3.3 (7.3) / 3.4 (7.5) / 3.5 (7.7) kg (lbs) |
| Servo actuator | SU-S PRO |
| Max. Boat Speed | 60 knots |
| Blade Stroke |
30 mm (1.2 in)
|
| Blade Rate | 100 mm/s (4 in/s) |
| Thru-Hull Cable Fitting | Concealed or above waterline |
| Cable Length | 3 m (10 ft), extendable up to 6 m (20 ft) |
| Cable Material | PUR |
| Connector | M12 5-pin circular |
| Connector Diameter | 14.5 mm (0.57 in) |
| Operating Voltage | 36 V DC |
| Power Consumption | 35 W max/servo unit |
| Operating Temperature | 0° to +40°C (+32° to +104°F) |
| Storage Temperature | -40° to +90°C (-40° to +194°F) |
| Waterproof Rating | IP68 5 m (16 ft) |
| Compliance | CE, FCC |
ORDERING DATA SERIES S PRO
| Model | Part No. |
| IT450-S PRO V13 | 2021482 Comes with Cable 3 m and Cable Cover |
| IT450-S PRO V16 | 2021483 COMES WITH CABLE 3 M AND CABLE COVER |
| IT450-S PRO V19 | 2021484 COMES WITH CABLE 3 M AND CABLE COVER |
| IT450-S PRO V22 | 2021485 COMES WITH CABLE 3 M AND CABLE COVER |
- Included in Kit Boxes
- Available as an Accessory
- Available as a Spare Part
