Description
The DU PRO is the powerhouse at the heart of your interceptor system — delivering a steady 36V of boosted DC power with rugged reliability.
WHERE THE POWER BEGINS

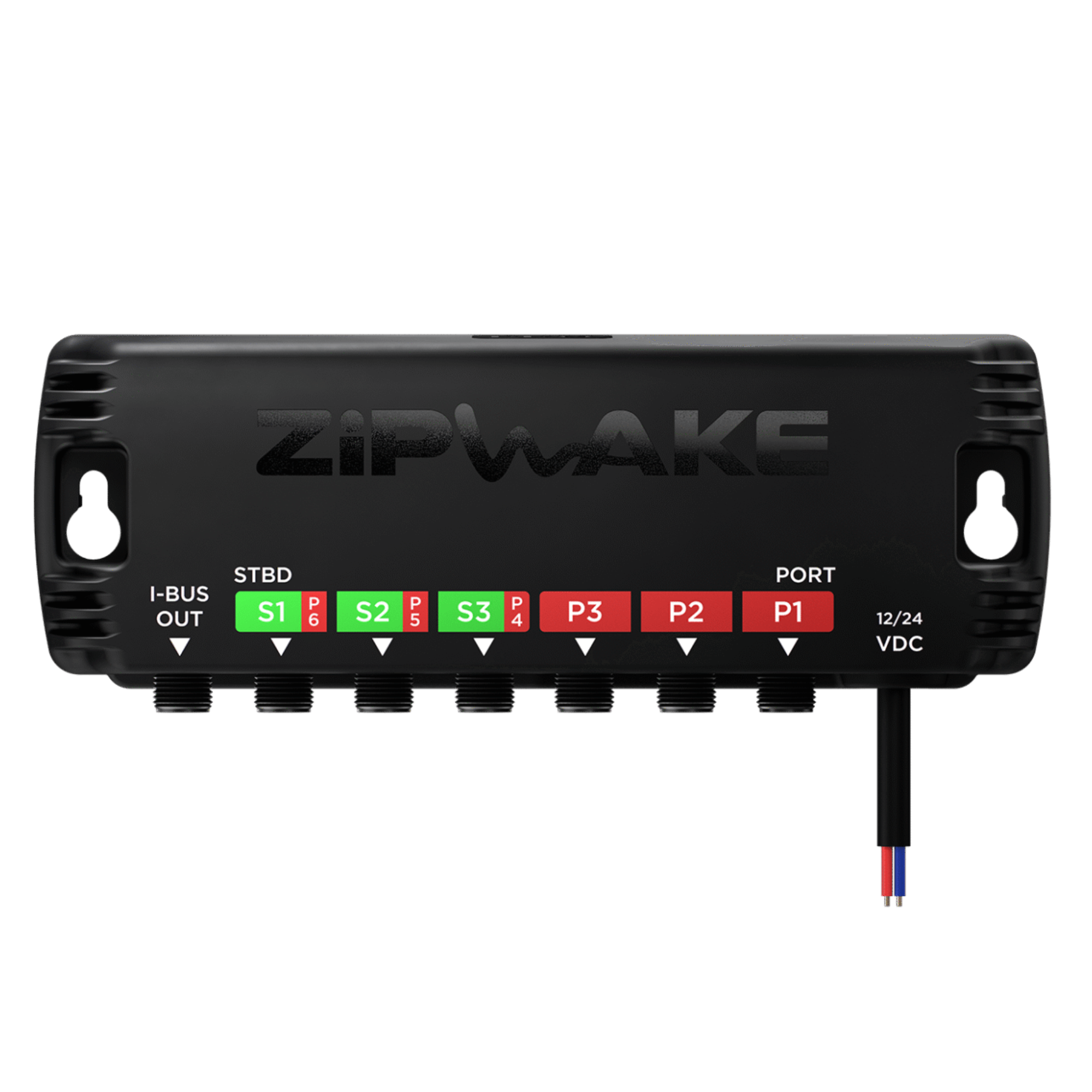

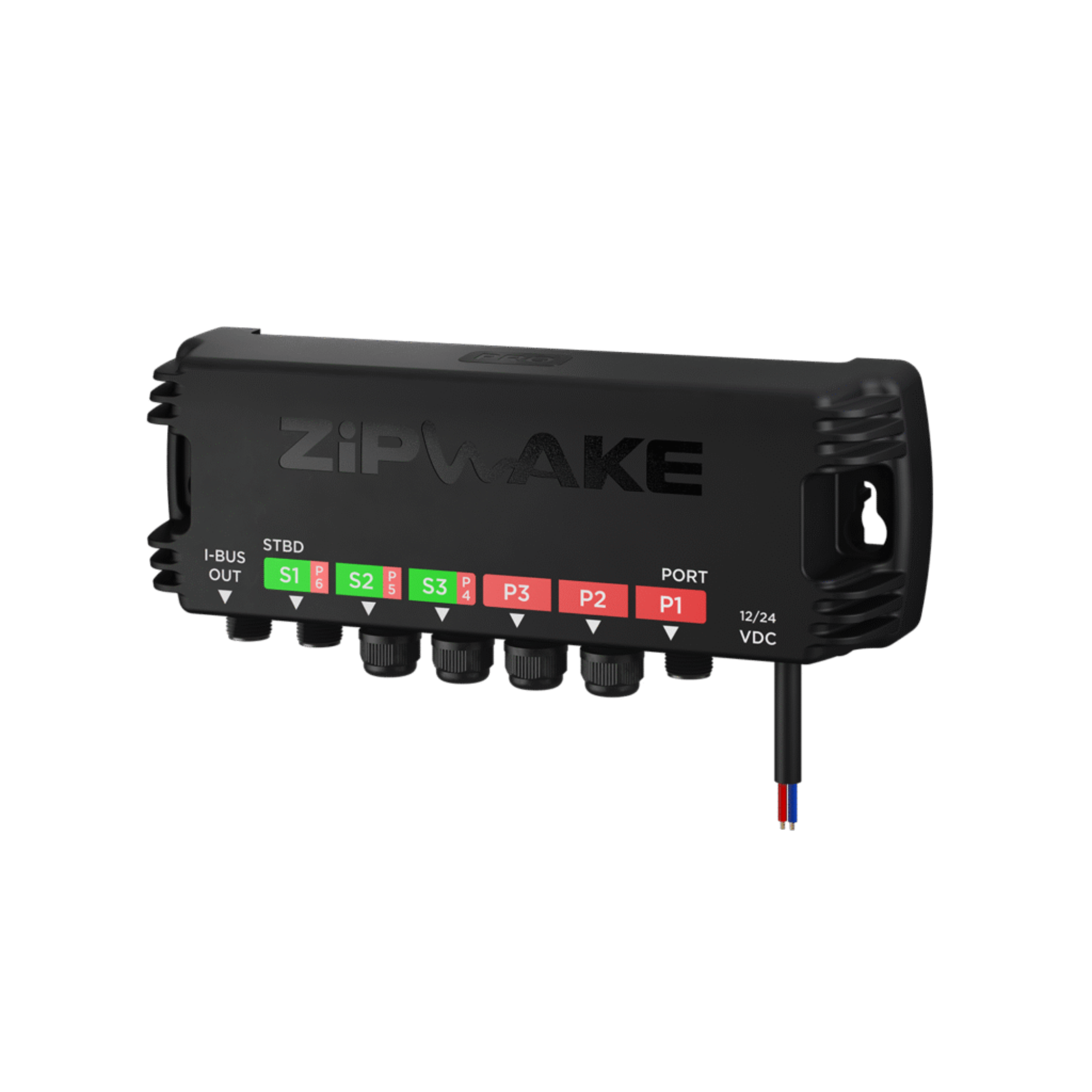

The distribution unit (DU PRO) with built-in voltage boost circuitry supplies the servo units with 36V DC power. It can accommodate
up to three Series E Pro dual-servo interceptors or six single-servo Pro interceptors.
The unit is connected to the main control panel or integrator module. It is robust, waterproof, oil resistant and ignition protected for mounting in an engine room.
The power cable is included for easy connection to a battery. The distribution unit has built-in electrical protection, including its own automatic circuit breakers.

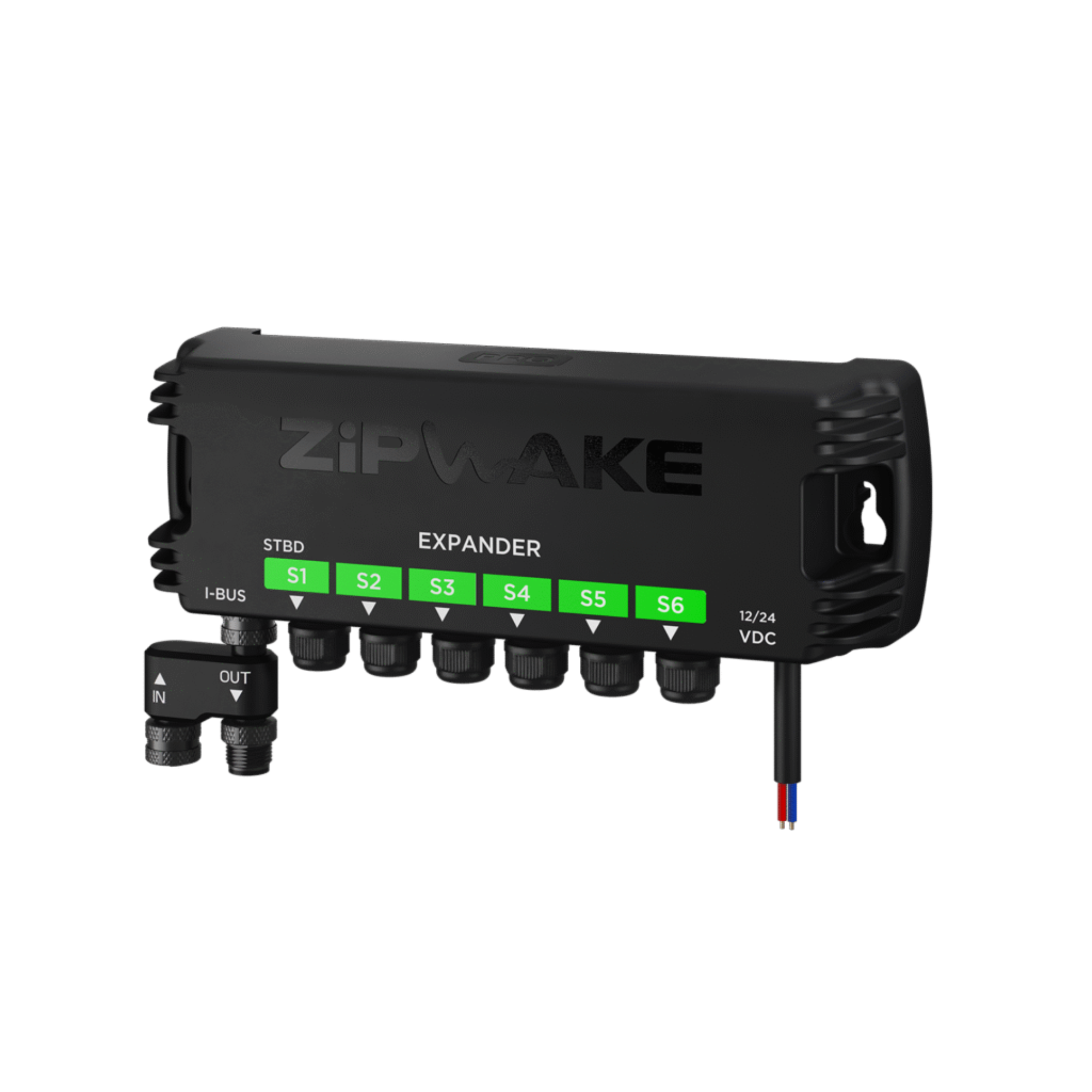

The system can be expanded with the distribution expansion unit (DU-EX PRO) to accomodate up to six Series E Pro dual-servo interceptors or any mix with single-servo pro interceptors.
SPECIFICATIONS
| Model | DU PRO / DU-EX PRO |
| Supply Voltage | 12 – 32 V DC |
| Power Consumption | 10 W max |
| Protection Fuse | Integrated and automatic |
| Power Cable Length | Length 4 m (13 ft ft), Diameter 9 mm (0.35 in), 12 AWG |
| Operating Temperature |
-20° to +85°C (-4° to +185°F)
|
| Storage Temperature | -40° to +90°C (-40° to +194°F) |
| Waterproof Rating | IP67 with cables and/or protective caps mounted |
| Oil resistance |
Common engine fluids
|
| Compliance | CE, FCC, SAE J1171 Ignition Protected |
| Weight | 1.1 kg (2.4 lbs) including power cable |
CONNECTORS
- Six interceptor connections
- I-BUS OUT (power and CAN bus to control panels)
- 2-lead power cable
ORDERING DATA
| Model |
Part No.
|
| DU PRO | 2022033 with Power Cable 4 m |
| DU-EX PRO | 2022034 with Power Cable 4 m |
- Included in Kit Boxes (DU PRO)
- Available as an Accessory
- Available as a Spare Part
