Description
Converts manual hydraulic steering for dramatic reduction in steering wheel torque and at the same time provides a pump for an autopilot installation.

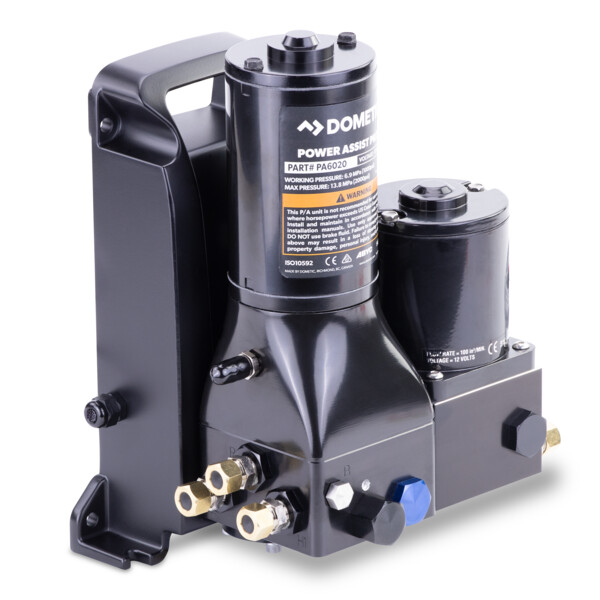

The SeaStar Power Assist Autopilot pump is the standard power assist product with the addition of a Type 1 or Type 2 autopilot pump. The SeaStar Autopilot pump is a fixed flow, reversible pump set that uses an internal hydraulic gear pump, producing very little vibration or noise. It is offered in 12 and 24 volt configurations, as well as two different pump sizes (type 1 & type 2).
Part # PA6010, PA6020, PA7010 and PA7020
Features
• Autopilot ready – a single installation (i.e. no need to break into system for install of pump).
• Converts manual hydraulic steering to power steering.
• Dramatic reduction in steering wheel torque.
• Easy installation.
• OEM or Retrofit.
• Simple add on to an existing SeaStar manual system (from 1.4 – 2.4 SeaStar helm pumps)
• Compatible with power purge system.
• Ignition protected (SAE J-1171).
• ABYC, CE, NMMA, ISO 10592 Approved.
• Replaces other 12 & 24 volt systems
……………………………………………………………………………………………………………………………………………..
TYPICAL INSTALLATION
……………………………………………………………………………………………………………………………………………..
SPECIFICATIONS
| TECHNICAL | |
| Voltage | 12 or 24 Volts |
| Fittings | Compatible with standard SeaStar Hoses (HO51xx etc.) |
| Oil Compatibility | SeaStar Steering Fluid (MIL 5606) |
| Weight | 4.9 lbs (2.2kg) |
| Autopilot Pump Sizes | Type 1: 60 in3/min (no load) Type 2: 100 in3/min (no load) |
| Max Pressure | 1000psi |
| Typical Current Draw (Depending on application) |
12V Type 1: 4 – 8 amps |
| 12V Type 2: 5 – 11 amps | |
| 24V Type 1: 2 – 4 amps | |
| 24V Type 2: 3 – 6 amps | |
| SEASTAR PA UNIT COMPLETE WITH PILOT PUMP FITTED | ||
| Std. SPA + Type 1 12V Pump | Part # | PA6010 |
| Std. SPA + Type 2 12V Pump | Part # | PA6020 |
| Std. SPA + Type 1 24V Pump | Part # | PA7010 |
| Std. SPA + Type 2 24V Pump | Part # | PA7020 |
| WIRE DETAILS | |
| Length | 24″ |
| Gauge | 12 awg |
| Connector | None – Bare Leads |
| AUTOPILOT PUMP CYLINDER CAPACITY | |
| Type 1 | 4.9 in3 – 12.5 in3 |
| Type 2 | 12.5 in3 – 21 in3 |
