Description

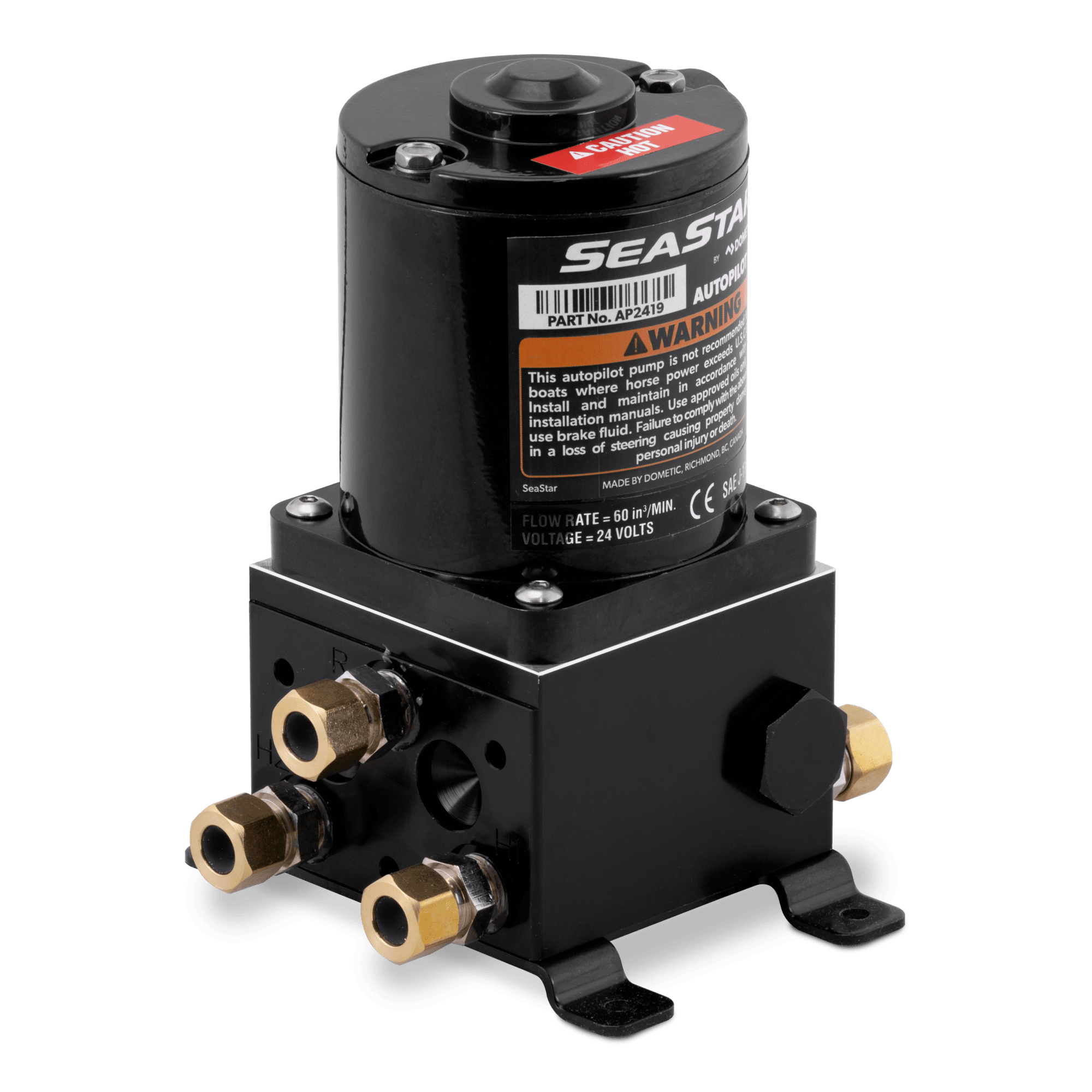

Dometic Autopilot Pump – 12V & 24V (Type 1 & Type 2)
The Dometic Autopilot Pump is a high-efficiency, fixed-flow, reversible hydraulic pump designed to deliver smooth, precise steering control with minimal vibration and noise. Built for demanding marine environments, this autopilot pump is available in both 12V and 24V configurations, as well as Type 1 and Type 2 pump sizes, ensuring compatibility with a wide range of hydraulic steering systems.
Engineered for reliability and long service life, the Dometic autopilot pump features a durable DC motor with long-life brushes and low power consumption, making it ideal for extended operation offshore. Its compact, marine-grade construction provides excellent corrosion resistance and easy installation, even in confined spaces.
The pump can be used as a stand-alone autopilot pump or mounted directly to a previously installed SeaStar Power Assist unit, helping prevent the need to break into existing hydraulic lines and simplifying upgrades.
Part # AP1219, AP1233, AP2419 and AP2433
Key Features:
-
High-efficiency, fixed-flow reversible pump
-
Available in 12V and 24V options
-
Type 1 & Type 2 pump sizes
-
Long-life DC motor with durable brushes
-
Compact, easy-mount design
-
Low power consumption
-
Marine-grade, corrosion-resistant engineering
-
Mounting bracket included
-
Compatible with SeaStar Power Assist systems
Ideal for recreational and commercial vessels, the Dometic Autopilot Pump delivers dependable, quiet, and efficient hydraulic steering performance for modern marine autopilot systems.
Specifications:
Technical:
Voltage 12 or 24 Volts
Fittings Compatible with standard SeaStar Hoses (HO51xx etc.)
Oil Compatibility SeaStar Steering Fluid (MIL 5606)
Weight 4.9 lbs (2.2kg)
Autopilot Pump Sizes Type 1: 60 in3/min (no load)
Type 2: 100 in3/min (no load)
Max Pressure 1000psi
Typical Current Draw(Depending on application) 12 or 24 Volts
12V Type 2: 5 – 11 amps
24V Type 1: 2 – 4 amps
24V Type 2: 3 – 6 amps
STAND ALONE PILOT PUMP (Can be retro fitted to a SPA unit)
Type 1: 12V–60cu”/min Part No. AP1219
Type 2: 12V–100cu”/min Part No. AP1233
Type 1: 24V–60cu”/min Part No. AP2419
Type 2: 24V–100cu”/min Part No. AP2433
WIRE DETAILS
Length 24″
Gauge 12 awg
Connector None – Bare Leads
AUTOPILOT PUMP CYLINDER CAPACITY
Type 1 4.9 in3 – 12.5 in3
Type 2 12.5 in3 – 21 in3
SPAA RETRO FIT KIT (3 Bolts / 3 O-rings)
Part No. HA1205
ADD A STATION KIT (Allows a SeaStar Pilot Pump
to be added into a manual hydraulic circuit.)
Part No. HF5501
