Description
- Available for both US and EU power setups.
- Easy to Use – Push button cable retraction and storage.
- “Zero Effort” Pull-Out – No more heavy pulling!
- Compact – Store power cable in the smallest possible area.
- Easy to Install – No mounting bracket required, frame itself can be mounted in a variety of ways.
- Built to Last – Designed to handle any environment on earth!
- Fully Tested and Approved – UL, CSA, ABYC, CE, ISO 8846
Customisable Features
- Available for both US and EU power setups.
- Available for both 12 & 24 VDC setups
- Designed to handle most 50 & 63 amp power cables (3 or 4 cond.)
- Can handle up to 65′ (20m) of cable, dependant upon diameter
- Can handle most cable jacket materials, including S, ST, SE, PUR
Part Number: | Description: | Input Voltage: | Cable Type: | Plug: | Cable Length: | Color: | Frame / Metal Components: |

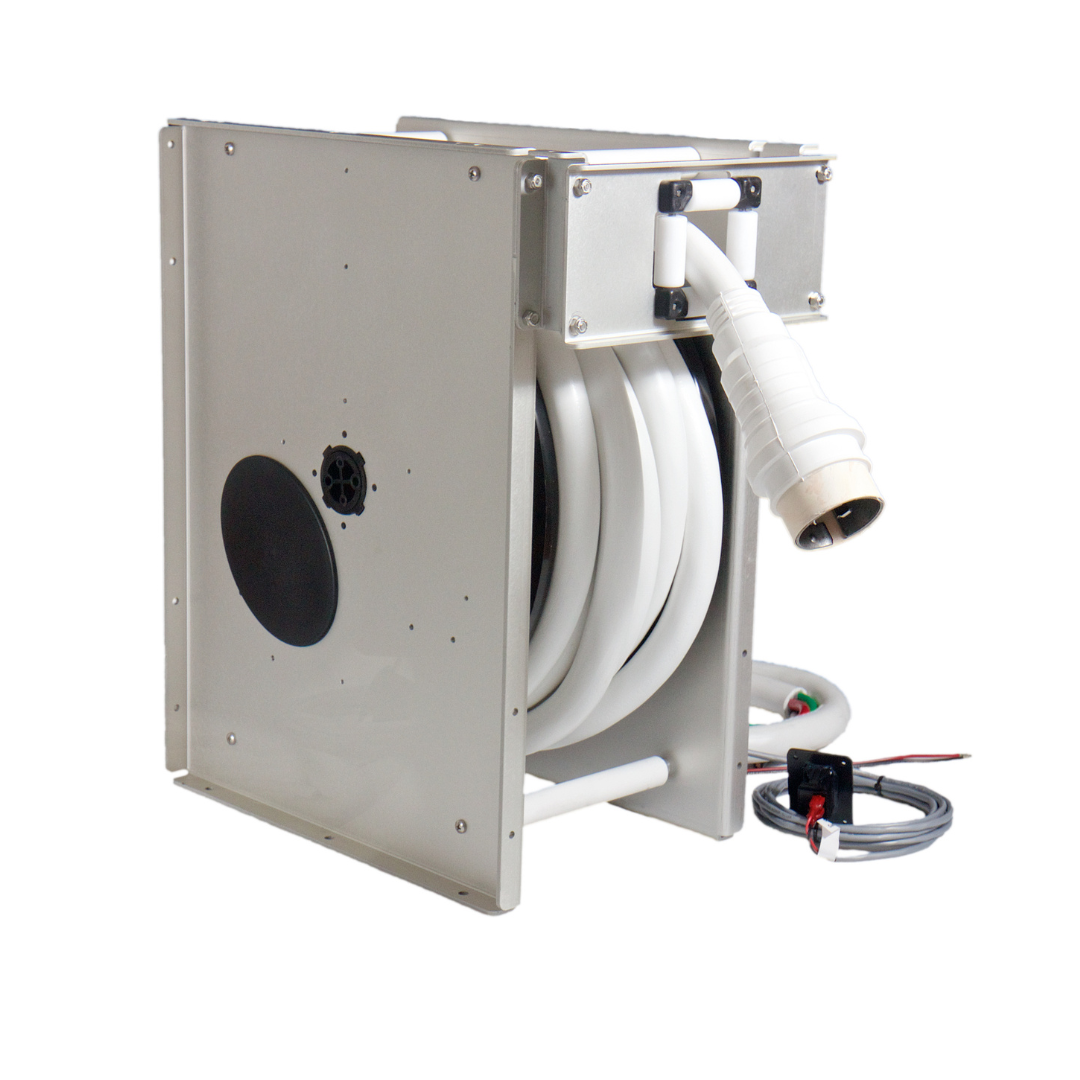

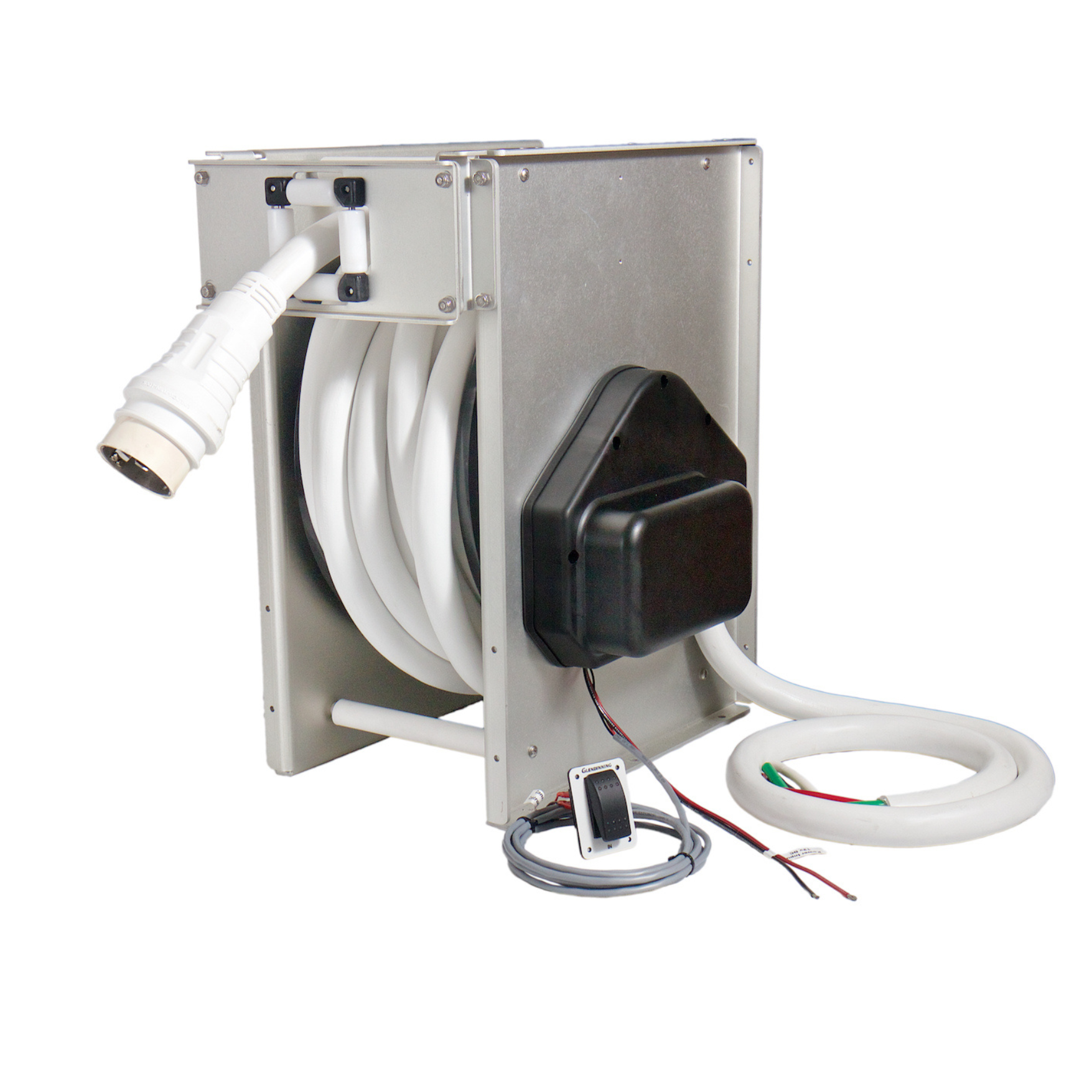

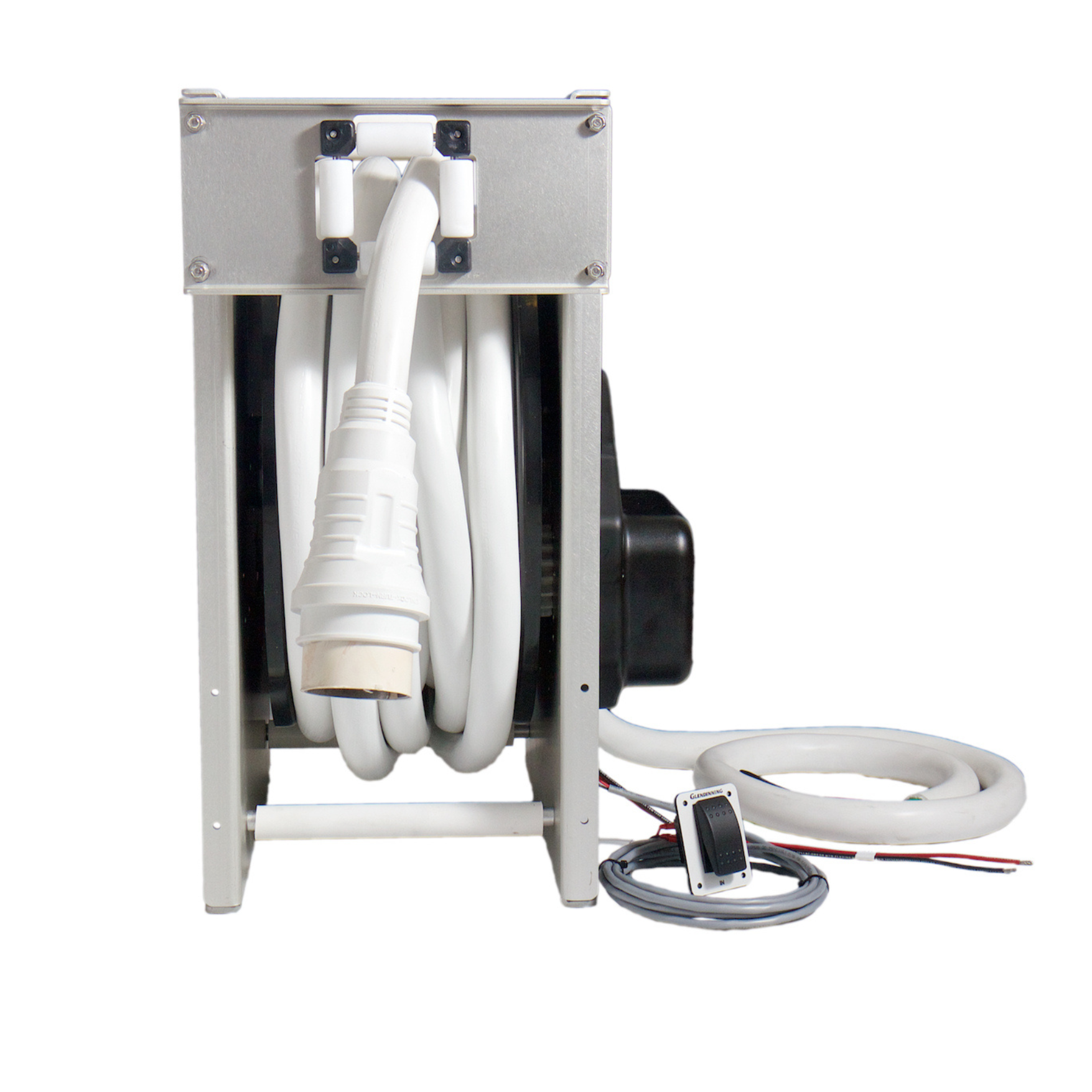

CRMA50-12-63IW | Cordreel – 50amp US | 12v DC | 50A 125/250v (#6/3 Iso) | Twistlock Plug | 50′ (15m) | White | Aluminum (Anodized) |
CRMA50-12-63IW | Cordreel – 50amp US | 12v DC | 50A 125v (#6/3) | Twistlock Plug | 50′ (15m) | White | Aluminum (Anodized) |
CRMA50-12-64W | Cordreel – 50amp US | 12v DC | 50A 125/250v (#6/4) | Twistlock Plug | 50′ (15m) | White | Aluminum (Anodized) |
CRMA50-12-64Y | Cordreel – 50amp US | 12v DC | 50A 125/250v (#6/4) | Twistlock Plug | 50′ (15m) | Yellow | Aluminum (Anodized) |
CRMA50-24-63IW | Cordreel – 50amp US | 24v DC | 50A 125/250v (#6/3 Iso) | Twistlock Plug | 50′ (15m) | White | Aluminum (Anodized) |
CRMA50-24-63W | Cordreel – 50amp US | 24v DC | 50A 125v (#6/3) | Twistlock Plug | 50′ (15m) | White | Aluminum (Anodized) |
CRMA50-24-64W | Cordreel – 50amp US | 24v DC | 50A 125/250v (#6/4) | Twistlock Plug | 50′ (15m) | White | Aluminum (Anodized) |

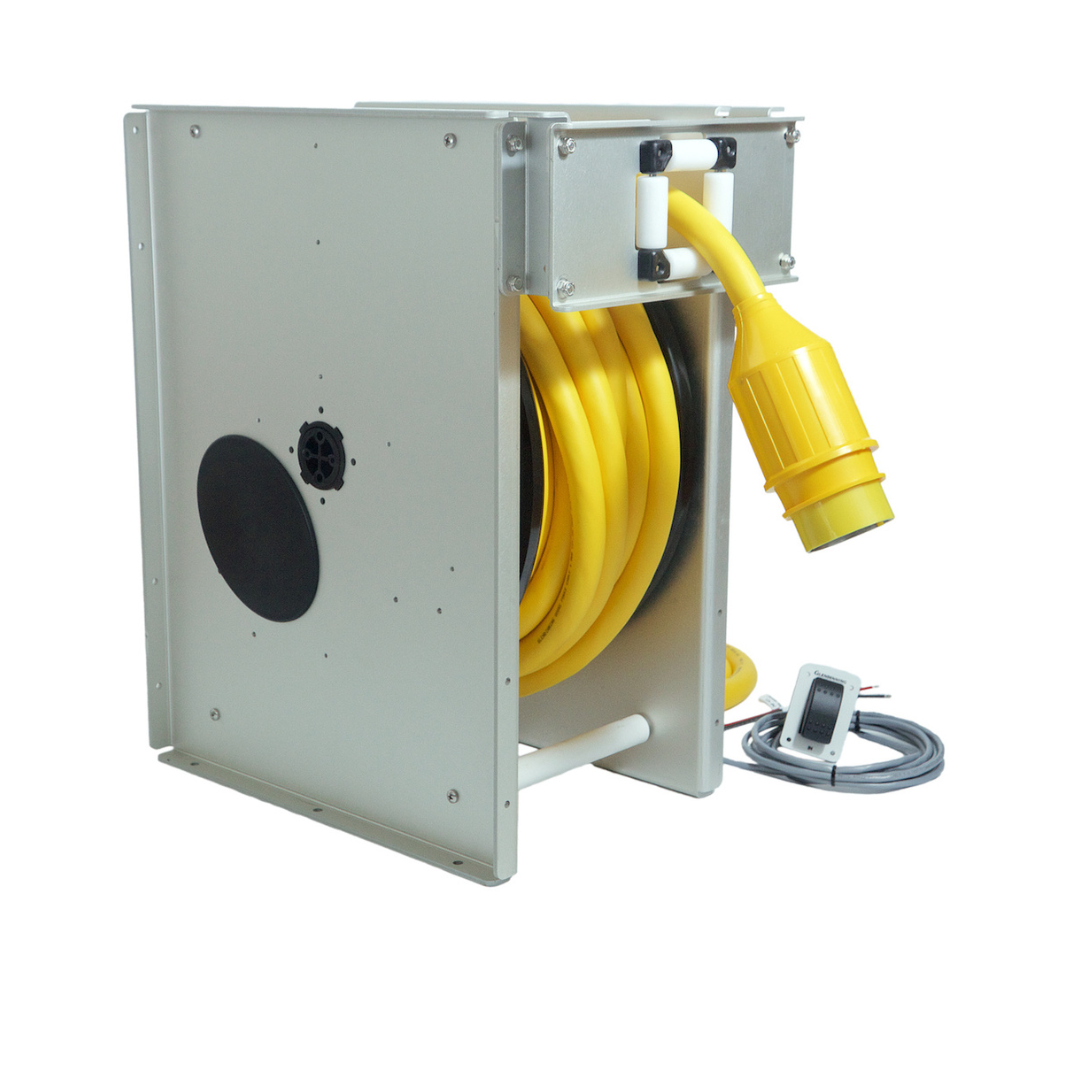

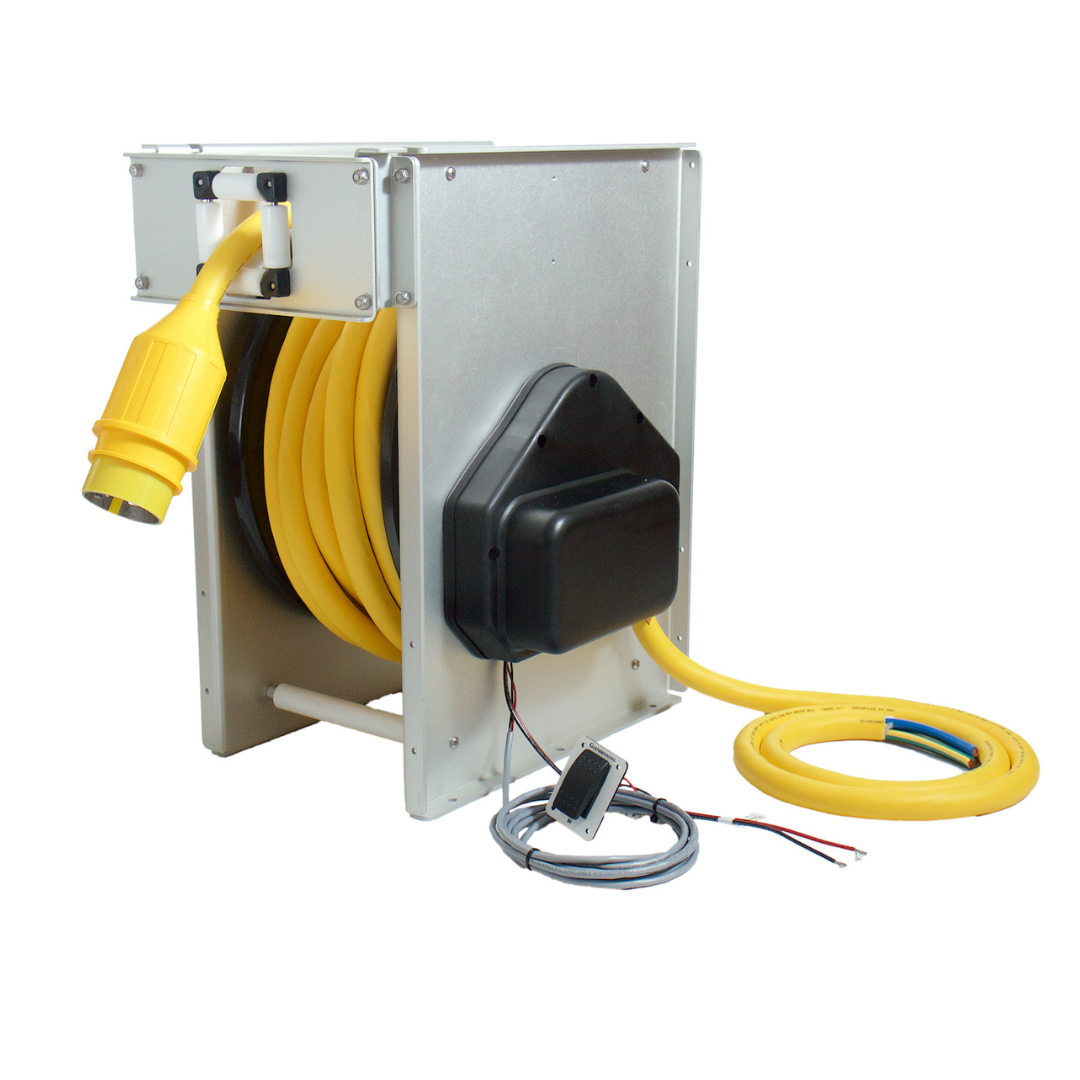

CRMA63-12-43Y | Cordreel – 63amp EU | 12v DC | 63A 250v Superflex | 63amp Twistlock Plug | 65′ (20m) | Yellow | Aluminum (Anodized) |
CRMA63-24-43Y | Cordreel – 63amp EU | 24v DC | 63A 250v Superflex | 63amp Twistlock Plug | 65′ (20m) | Yellow | Aluminum (Anodized) |
To view the CRMA 50/63 brochue, please click here.
