Description

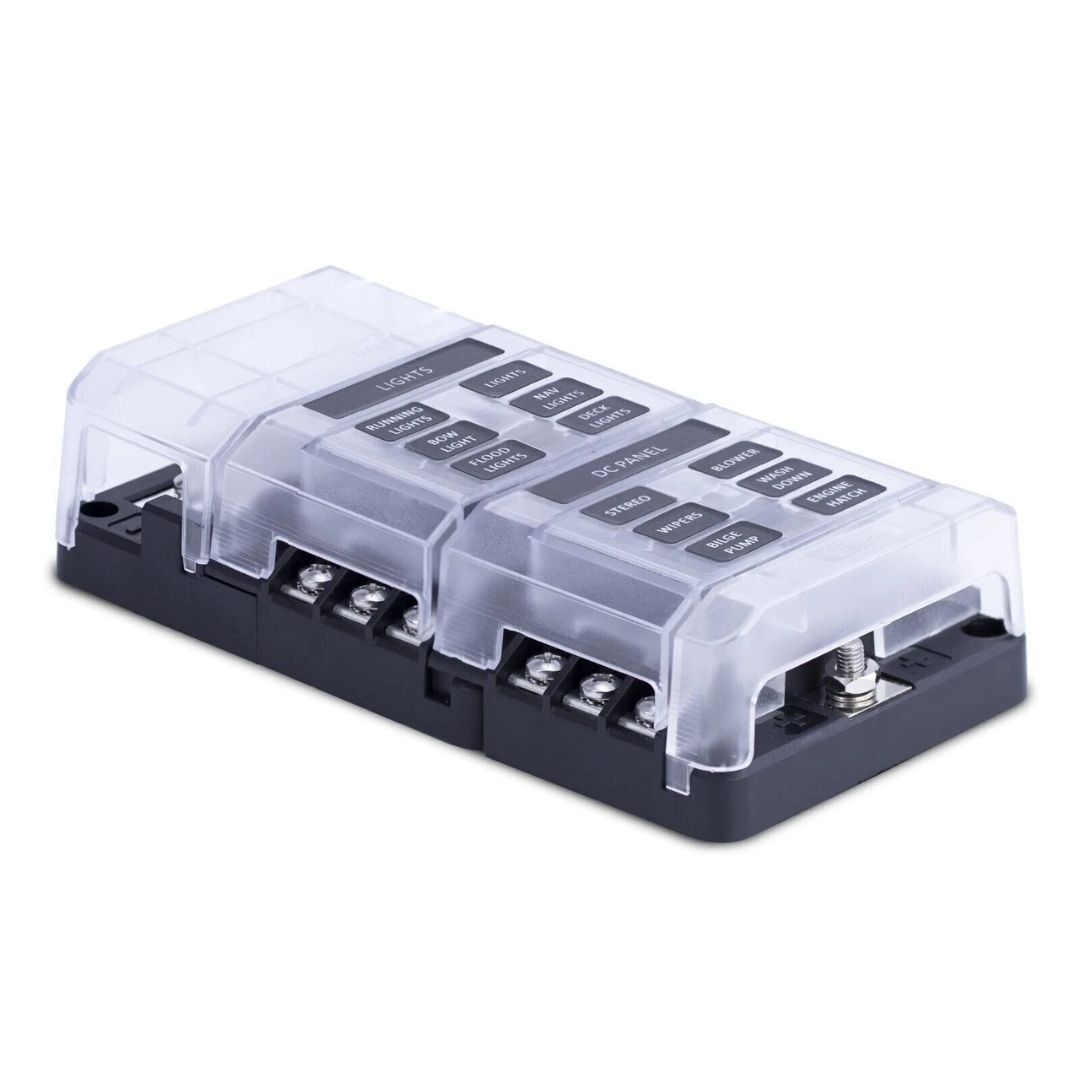

FS40840 Sierra Engine and Drive Parts 408 Series Fuse Block 12 Gang w/ bus bar and cover
Overall size: 3 3/8″W x 5 1/4″L x 1 5/8″H
Max Voltage Rating: 32VDC
Rating per Circuit: 30A
Max Cumulative Rating per block: 100A
Terminal Stud Size: M5
Screw Size: M4
Accepts ATP/ATC/ATO blade style fuses up to 30A
ABYC/USCG compliant Transparent cover with recessed area for labels (60pc. decal set included)
Storage for 2 spare fuses
LED indication of blown fuses
12 Gang with Bus Bar and Cover
