FLEX

Description

Build your own suspension seat for your boat from A Shark FLEX suspension unit. You can select your seat type, choose from a range of base options, and add accessories to suit your requirements.

Specifications of FLEX suspension unit:

• Simplicity: has only 3 unique parts
• Compatible with most third party seats and attachments (including swivels) as well as Shark seats. See Operational info for mounting specifics.
• 225mm of progressive and ULTRA-SMOOTH travel
• Light: Only 9kg (20lb)
• 450mm overall height
• Compact: 300mm wide, 350mm deep
• Less fatigue: From 3 axis shock mitigation eliminates whiplash and takes stress off your body
• Non-corroding: soft-edged and non-marking, built with 316 stainless and Flexanite
• Super low maintenance – See Operational info.
• Tested: 1 Million full 10g impacts  – See how they are tested here
• Crash test rating: To HSC2000 Annex 10 requirements
• 3 year global Manufacturers Warranty on all parts
• Independent tests reveal that Flex outperformed well known European brand (See report here)
• Easy one man installation
• Easily repairable: shock can be replaced in under 2 minutes by one person
• Suspension can be bolted directly to your deck with 8 bolts (minimum) see operational info.

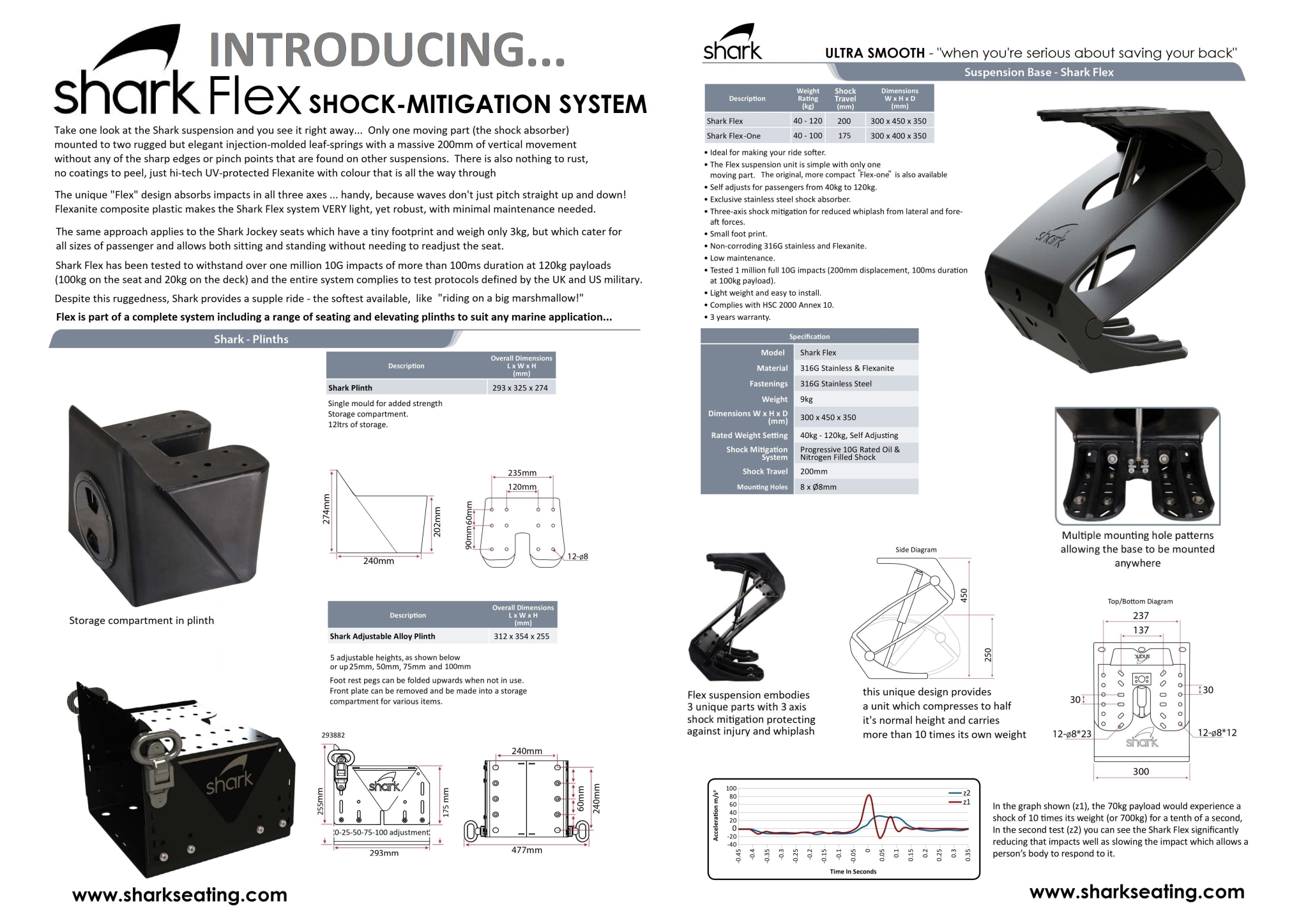

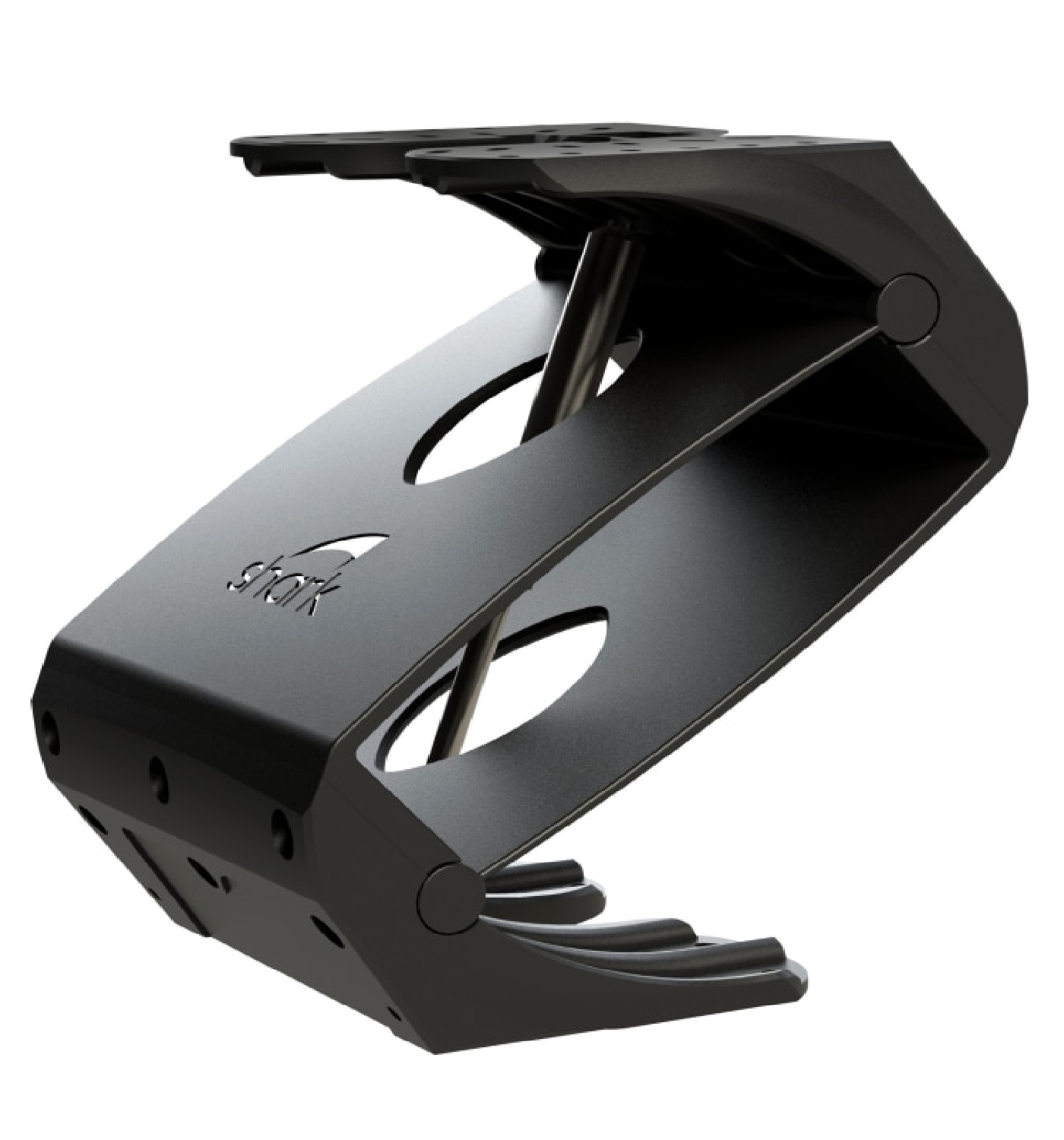

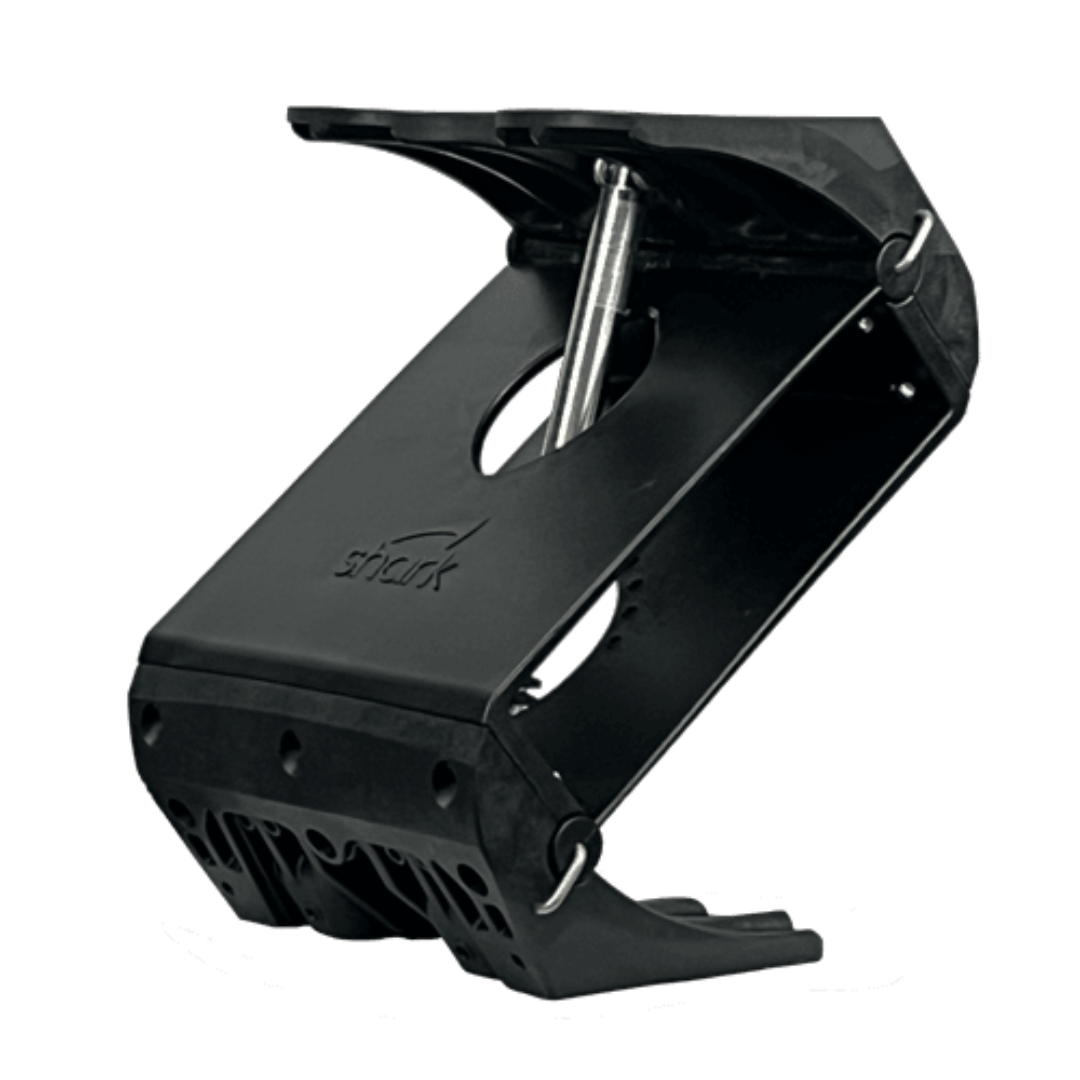

Take one look at the Shark suspension and you see it right away… Only one moving part (the shock absorber) mounted to two rugged but elegant injection-molded leaf springs with a massive 200mm of vertical movement without any of the sharp edges or pinch points that are found on other suspensions. There is also nothing to rust, no coatings to peel, just hi-tech UV-protected Flexanite with colour that is all the way through.

The unique “FLEX” design absorbs impacts in all three axess… handy, because waves don’t just pitch straight up and down! Flexanite composite plastic makes the Shark Flex system very light, yet robust, with minimal maintenance needed.

The same approach applies to the Shark Jockey seats which have a tiny footprint and weigh only 3kg, but which cater for all sizes of passenger and allows both sitting standing without needing to readjust the seat.

Shark Flex has been tested to withstand over one million 10G impacts of more than 100ms duration at 120kg payloads (100kg on the seat and 20kg on the deck) and the entire system complies to test protocols defined by the UK and US military.

Despite this ruggedness, Shark provides a supple ride – the softest available, like “riding on a big marshmallow!”

Models:

Specification:
