Description
Fast-acting and durable Servo units for PRO INTERCEPTORS

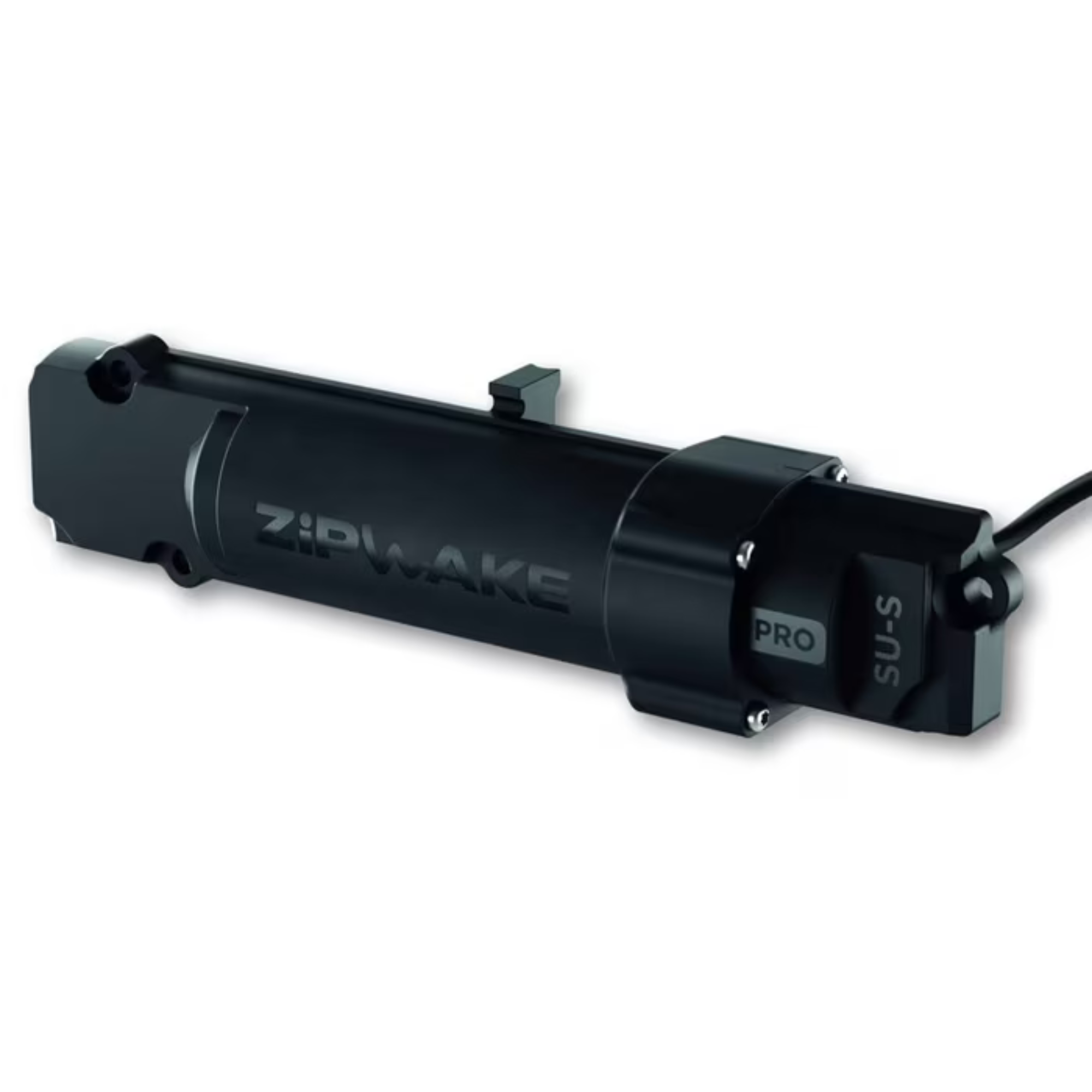

The PRO submersible electrical servo unit fits inside the interceptor, where it drives with precision the mechanism that provides linear motion to the interceptor blades. For extended service life, the servo unit has double shaft seals and a precision-ground shaft in special high-grade stainless steel. The unit is fast-acting, durable, calibration free and easy to install or replace. It comes with a rugged 3 m cable with a self-sealing thru-hull fitting.
SPECIFICATIONS
| Model | SU-S PRO | SU-E PRO | SU-400E PRO |
| Interceptors (PRO Models) | IT600-E, IT800-E, IT1000-E, IT600-E chine and IT600-E tunnel models | IT400-E, IT400-E chine and IT400-E round | |
| Servo motor type | Brushless DC with Hall sensors | Brushless DC with Hall sensors | Brushless DC with Hall sensors |
| Operating voltage | 36 V DC | 36 V DC | 36 V DC |
| Power consumption | 35 W max | 35 W max | 35 W max |
| Operating temperature | 0° to +40°C (+32° to +104°F) | 0° to +40°C (+32° to +104°F) | 0° to +40°C (+32° to +104°F) |
| Storage temperature | -40° to +90°C (-40° to +194°F) | -40° to +90°C (-40° to +194°F) | -40° to +90°C (-40° to +194°F) |
| Waterproof rating | IP68 5 m (16 ft) |
IP68 5 m (16 ft)
|
IP68 5 m (16 ft) |
| Compliance | CE, FCC | CE, FCC | CE, FCC |
| Cable length | 3 m (10 ft), extendable up to 6 m (20 ft) | 3 m (10 ft), extendable up to 6 m (20 ft) | 3 m (10 ft), extendable up to 6 m (20 ft) |
| Cable material | PUR | PUR | PUR |
| Connector | M12 5-pin circular | M12 5-pin circular | M12 5-pin circular |
| Connector diameter | 14.5 mm (0.57 in) | 14.5 mm (0.57 in) | 14.5 mm (0.57 in) |
| Weight | 0.7 kg (1.54 lbs) including cable | 0.7 kg (1.54 lbs) including cable | 0.7 kg (1.54 lbs) including cable |
ORDERING DATA
| Model | Part No. |
| SU-400E PRO | 2022235, Comes with Cable 3 m |
| SU-E PRO | 2022035, Comes with Cable 3 m |
| SU-S PRO | 2021230, Comes with Cable 3 m |
- Available as a Spare Part
