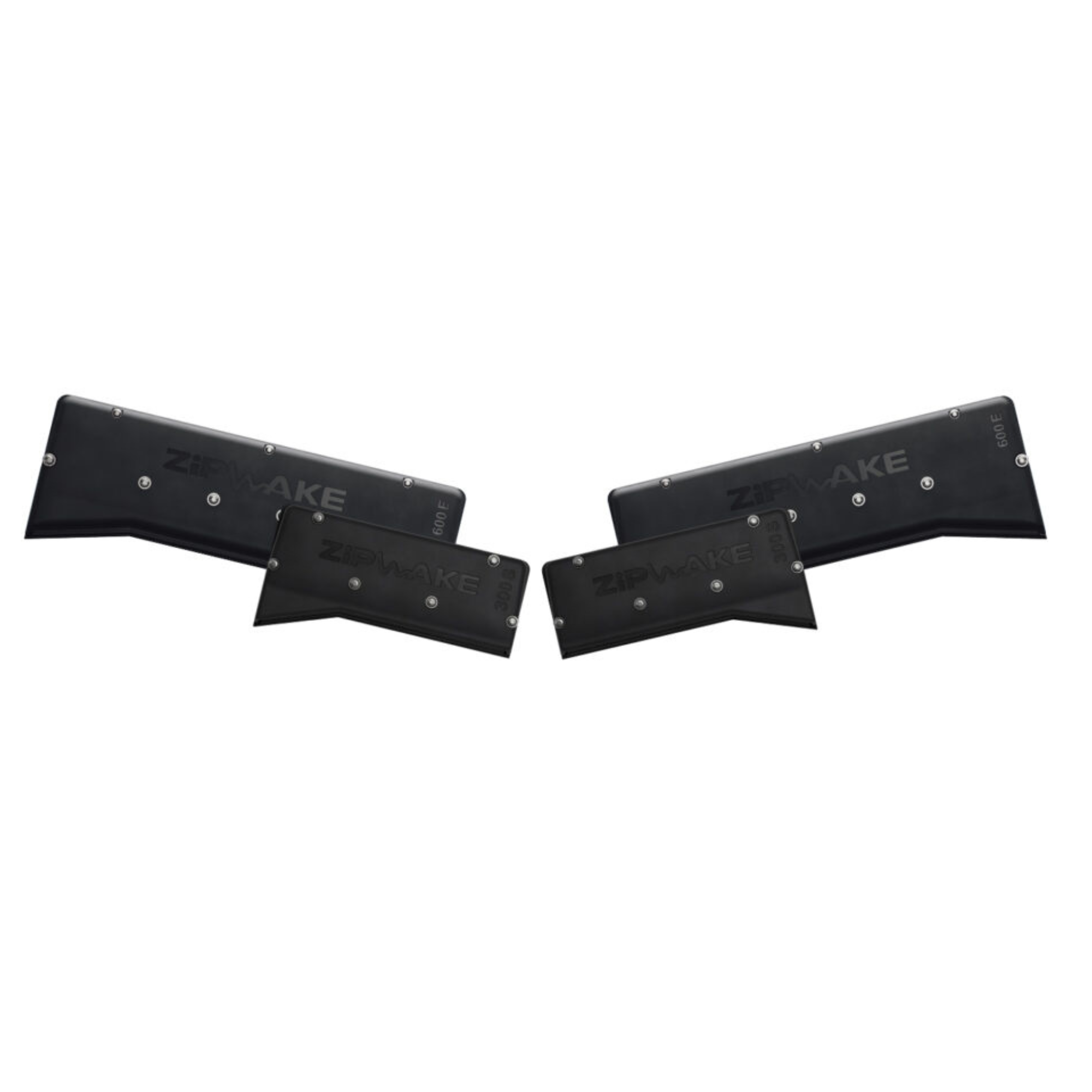

Zipwake Series E PRO Chine Interceptors – For Boats Up to 100 ft
Chine interceptors provide a unique means of maximizing pitch and roll motion control by utilizing the furthest outboard surfaces of the hull bottom for lift generation. As a rule, the lift effect of a chine interceptor matches the lift of a straight interceptor one size larger mounted inboard of the chine, making them the go-to choice when selecting interceptors.
KEY FEATURES:
- 60 mm blade stroke for high-demand installations
- True outboard mounting
- Modular design with integrated mounting plate
- Fast actuation for responsive trim control
- Submersible servo units
- Brushless 12–24V DC servo motor
- Calibration-free operation
- Automatic cleaning with selectable periodic cleaning cycles
- Helps prevent fouling inside the interceptor
- No corrosive materials
- Thru-hull fitting options for above-waterline or concealed installation
SPECIFICATIONS SERIES E PRO

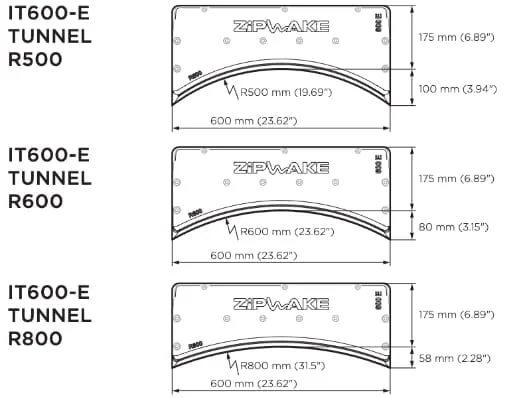

| Model | IT600-E PRO TUNNEL R500 / IT600-E PRO TUNNEL R600 / IT600-E PRO TUNNEL R800 |
| Length mm (in) | 600 (24) / 600 (24) / 600 (24) |
| Weight kg (lbs) | 8.4 (18.5) / 8.2 (18.1) / 7.9 (17.4) |
| Servo actuator | SU-400E PRO / SU-E PRO / SU-E PRO |
| Max. Boat Speed | 60 knots |
| Blade Stroke |
60 mm (2.4 in)
|
| Blade Rate | 200 mm/s (7.9 in/s) |
| Thru-Hull Cable Fitting | Concealed or above waterline |
| Cable Length | 3 m (10 ft), extendable up to 6 m (20 ft) |
| Cable Material | PUR |
| Connector | M12 5-pin circular |
| Connector Diameter | 14.5 mm (0.57 in) |
| Operating Voltage | 36 V DC |
| Power Consumption | 35 W max/servo unit |
| Operating Temperature | 0° to +40°C (+32° to +104°F) |
| Storage Temperature | -40° to +90°C (-40° to +194°F) |
| Waterproof Rating | IP68 5 m (16 ft) |
| Compliance | CE, FCC |
ORDERING DATA SERIES E PRO
| Model | Part No. |
| IT600-E PRO TUNNEL R500 | 2022021 Comes with Cable 3 m and Cable Cover |
| IT600-E PRO TUNNEL R600 | 2022022 COMES WITH CABLE 3 M AND CABLE COVER |
| IT600-E PRO TUNNEL R800 | 2022023 COMES WITH CABLE 3 M AND CABLE COVER |
- Included in Kit Boxes
- Available as an Accessory
- Available as a Spare Part
