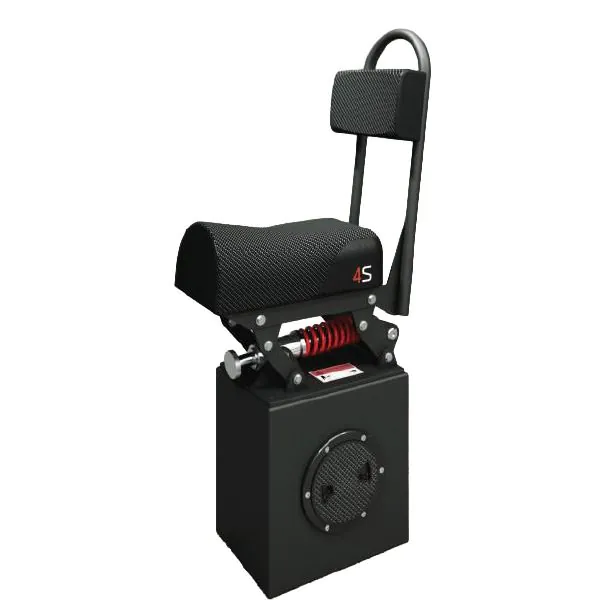

RIB-04 Full Suspension Seat & Pedestal Set With Storage

Description

Full Pilot Seat Set Including Shock Mitigating Pedestal & Upholstered Seat – Includes Watertight Under-Seat Storage

The RIB04 Suspension Pilot Seat is a premium shock mitigating seating system designed to provide outstanding comfort, safety and durability for both commercial and leisure boats. Combining an advanced suspension pedestal, ergonomic jockey-style seat and integrated watertight storage, the RIB04 is the ideal solution for high-speed marine applications where operator comfort and protection are essential.

Built around the proven MPS suspension base, the RIB04 features a convenient front-mounted adjustment control, allowing users to quickly fine-tune the suspension to suit their weight. The infinitely adjustable spring rate accommodates users between 60kg and 130kg+, while the progressive suspension system prevents bottoming out, even in demanding sea conditions.

Developed in collaboration with world-renowned suspension specialists Kayaba and Öhlins, the shock absorber system has been endurance tested to simulate 500 hours of heavy-duty boating (+6G) per year for over 30 years, delivering exceptional long-term reliability and performance.

The suspension pedestal is topped with a comfortable jockey-style pilot seat, upholstered in premium black marine-grade vinyl for durability, weather resistance and easy maintenance. Beneath the pedestal is an integrated 30-litre watertight storage compartment, providing valuable dry storage without compromising deck space.

Certified to ABYC H-31 Type AO standards, the RIB04 is suitable for RIBs, rescue boats, patrol boats, workboats, military craft and high-performance leisure vessels operating at speeds of up to 50 knots.

Premium Marine-Grade Construction:

Every component of the RIB03 is designed for maximum durability in harsh marine environments.

• Marine-grade 6061-T6 and 5052-H32 aluminium construction
• AkzoNobel Interpon D2525 electro powder-coated finish for superior UV and corrosion resistance
• Natural anodised aluminium components (30+ micron finish)
• AISI 316/316L stainless steel fixings and hardware throughout
• High-strength POM and 30% glass fibre reinforced Polyamide 6.6 engineering plastics

Key Features:

• Complete suspension pilot seat with integrated pedestal
• Advanced shock mitigating suspension system
• Front-mounted suspension adjustment for quick weight changes
• Adjustable spring rate from 60kg to 130kg+
• Progressive suspension prevents bottoming out
• Developed with Kayaba and Öhlins suspension technology
• Endurance tested for the equivalent of 30+ years of heavy marine use
• Comfortable jockey-style seat upholstered in premium marine vinyl
• Integrated 30-litre watertight under-seat storage locker
• Marine-grade aluminium construction with corrosion-resistant finish
• ABYC H-31 Type AO compliant
• Suitable for boats travelling up to 50 knots
• Seat height: 650mm

Ideal Applications:

• RIBs and rigid inflatable boats
• Rescue and safety boats
• Patrol and police vessels
• Commercial workboats
• Offshore support craft
• High-performance leisure boats
